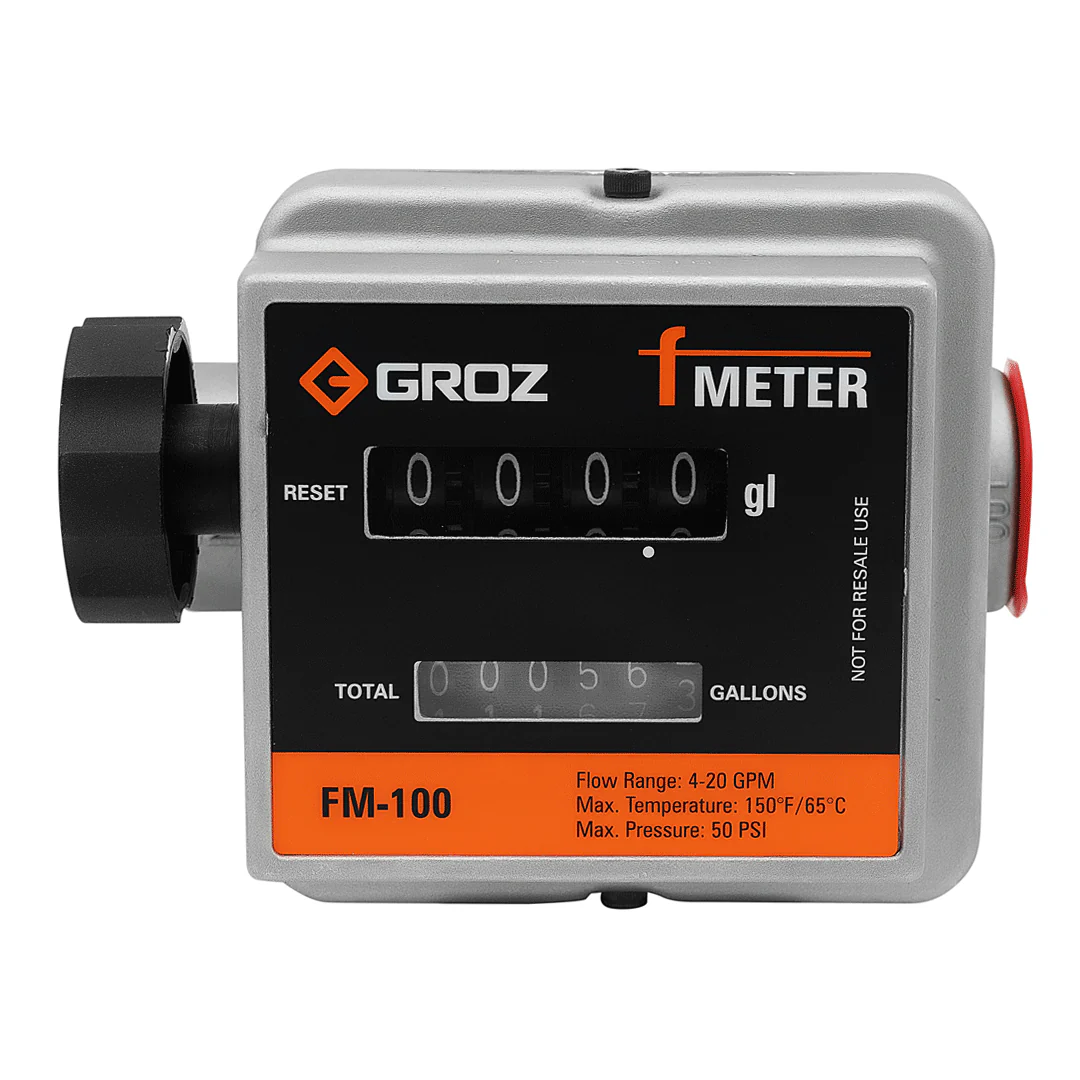

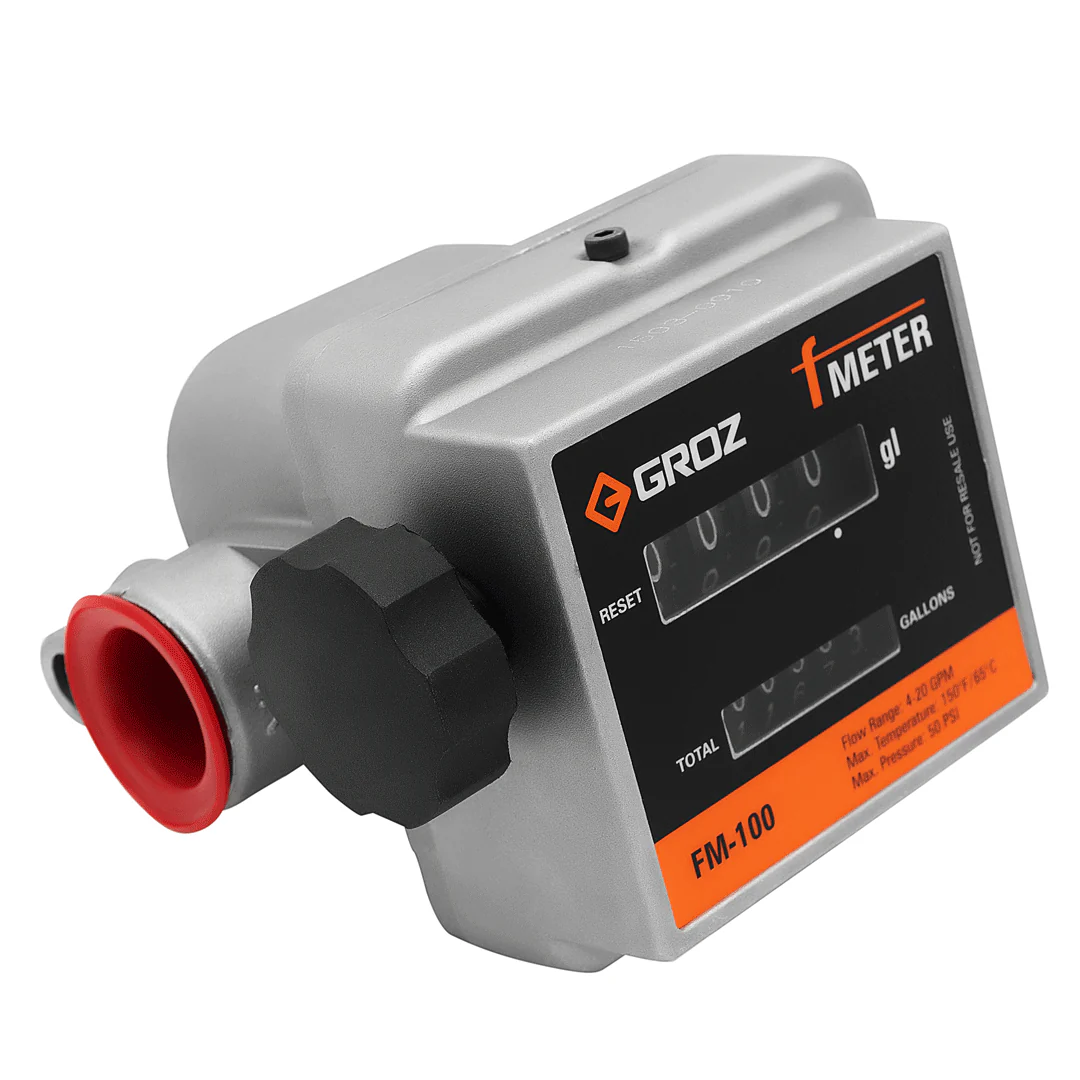

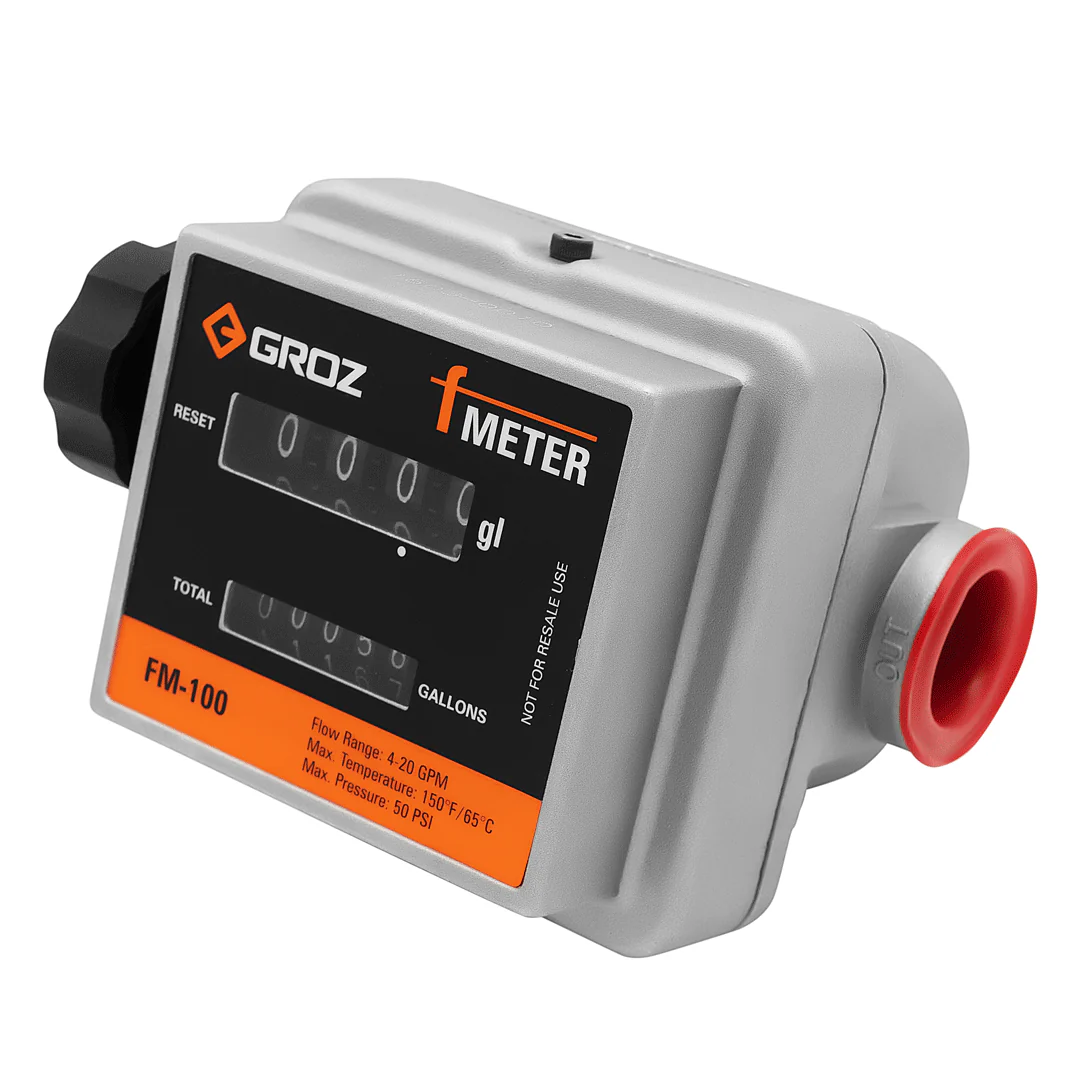

F Meter Mechanical Fuel Meter, Gallons, 1" NPT (F)

World class Mechanical Fuel Meter, extremely compact, yet easy to read.

Nutating Disc Mechanism offers high tolerance to fuel contamination.

Robust aluminum die cast construction.

3 Port Design

The meter can be used:
a. In–Line
b. At 90 Degrees
Inlet & outlet ports at right angle

Register cap can be easily removed & rotated to every 90° orientation for convenient read out.

Easy user re-calibration

For use with electric fuel pumps or gravity flow (with a minimum gravity head of 4')

Reads in gallons

1" threads

Working Temperature of this meter is 14°F to 150°F, meter not waterproof

WETTED COMPONENTS

Aluminum, Poly Butylene Terephthalate (PBT), Viton, Stainless Steel

RECOMMENDED USE

Diesel, Gasoline, Low to Medium Viscosity Oils

DO NOT USE WITH

Water based media
